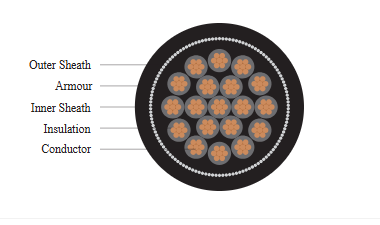

Cable Construction

 2.5 Sq. mm copper conductor, XLPE insulated unarmoured & galvanised steel strip/wire armoured control cables as per IS 7098 Part- 1.

Conductor: CU conductor solid as per Cl. 1 IS 8130 or stranded as per Cl. 2 IS 8130

Insulation: Crosslinked polyethylene (XLPE)

Core Colours: Up to 5 cores by colour coding & more than 5 cores number printing on core as per IS 7098 Part – 1

Inner Sheath: PVC / PVC tape as per IS 7098 ( P-1 )

Armouring: Single armouring of galvanised steel strip / wire

Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type)

Cable Color: Black (Options : Any other color as per requirement)

Cable Design Parameters

While ordering, in addition to the part number the following details shall also be advised:

 Class of conductor – Cl. 1 or 2.

 Sheath Type – PVC Type ST – 2 (FR or FRLS).
