Application

Connecting cable between frequency convertor and motor. This motor power supply cable is used for the frequency converters and assures electromagnetic compatibility in plants and buildings Handling equipment, for SIMOVERT drives, they are qparticularly suitable for use with industrial pumps, ventilators, conveyor belts and air conditioning installations and similar applications.

Technical Data

Standard: Adapted DINVDE 0207/0250/0295

Nominal Voltage: UO / U 600 / 1000V

Insulation Resistance: Min. 200 GΩ x cm

Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 15 x cable ø. Fixed installation 4 x cable ø

Test Voltage: Supply cores : C/C 4000V & C/S : 2000V

Control cores: C/C : 1500V, C/S : 750V

Mutual Capacitance: According to different cross sections: core/core 70 to 250 nF/km core/screen 110 to 410 nF/km

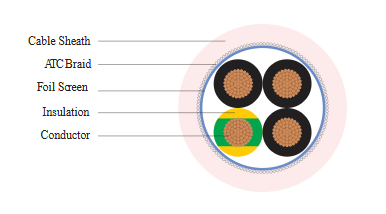

Cable construction

 Bare copper, fine wire conductors according to EN 60228 cl. 5.

 PE ( polyethylene ) core insulation.

 Core colours : black, brown, grey, green-yellow.

 Cores stranded in concentric layers.

 1. screening with special aluminum foil.

 2. screening with tinned coated copper braids.

 Transparent special PVC outer sheath.

Properties
