Standard

 Adapted to BS 6862

Voltage Rating

 Max. 200V

Test Voltage

 1000 Volts

Temperature Range (3000 Hrs)

 -40°C to + 90°C

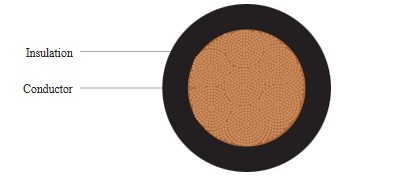

Cable Construction

 Bare copper strands as per EN 60228, class 6

Packing

 Available in wooden drums.

Conductor Bunch Variants

 Normal flex and Super flex

Special Elastomeric Insulation

 Thermoplastic Elastomer Vulcanizate

Special Properties

 Acid Resistance Test: In sulphuric acid of specific gravity 1.28 at a temperature of 160°C to 210°C and check the cable after 60 hrs.

 No effect on insulation. Insulation free from deformation and shrinkage

 Chemical Resistance: Resistant to ozone, acids, solvents, detergents, vaseline and oils.
