Applications

These power and control flat cables can be used on festooned systems on handling equipment as overhead cranes. They are designed for indoors and outdoors for ambient temperature down to -25°C.These cables can accept a trolley traveling speed up to 120m / min.

Standard

 HD 359 S2, IEC 227 Part 6, EN 50214

Technical Data

Voltage Rating:

 H05VVH6-F – 300/500V

 H07VVH6-F – 450/750V

Colour Coding:

 Core 1: Black.

 Core 2: Light-blue.

 Core 3: Green-yellow.

 Core 4: Brown.

 Core 5: Black.

 Core 6 and above: All black numbered cores with one green / yellow earth core.

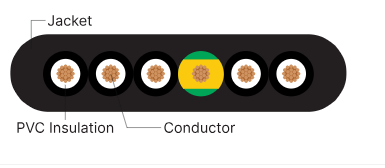

Cable Construction

 Flexible bare copper, Class 5, IEC 60228

 PVC (polyvinyl chloride) insulation

 PVC (polyvinyl chloride) outer sheath

Cable Colour: Black

 *A stripping thread can be used in each group of cores.

Bending Radius: Fixed installation: 8 x cable height.
