Application

EXVB is a power distribution cable suitable for low voltage applications in power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants where heavier current and thermal loads are expected. This cable is mainly suitable for fixed installations in ground, canals, concrete and in areas free from heavy mechanical stress.

Standard

HD 603 Part 5/ Sect.A & IEC 60502-1

Technical Data

Nominal Voltage: Uo / U 0.6/1.0 kV

Temperature Range: -5°C to 90°C

Maximum Conductor Temperature: 12 x D

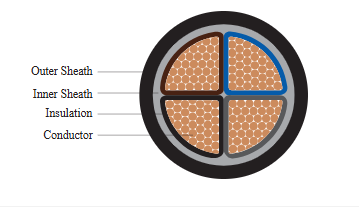

Cable Construction

Conductor: Plain Copper conductor RE,RM,SM (Class-1 & Class-2)

Insulation: Crosslinked polyethylene (XLPE)

Core colours:

3C: brown, black & grey

4C: blue, brown, black, grey

Inner sheath : Special Bedding Compound

Outer sheath: Special PVC outer sheath

Sheath Colour: Black
