Application

These are unsheathed twisted wires used in automobiles

Standard

 In accordance to ISO 6722-1

Temperature Range (3000 Hrs)

 -40°C to +105°C

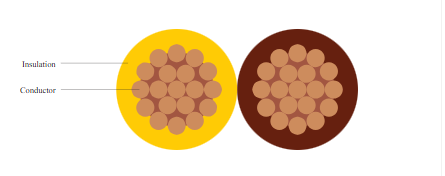

Cable Construction

 Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned copper construction acc. to ISO 6722-1

 PVC with properties according to according to ISO 6722-1, Class B

Special Properties

 Higher heat resistance. Tinned copper conductor. Other lay lengths available on request.

Packing

 Available in 100 mtrs. Longer length available in spools or wooden drums.
