FLRYW with thin wall PVC insulation (Type A / Type B, hot pressure resistant)

Application

These are thin wall auto cables with hot pressure resistant properties

Standard

 In accordance to ISO 6722-1

Temperature Range (3000 Hrs)

 -40°C to +125°C

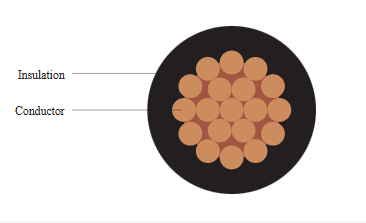

Cable Construction

 Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned construction acc. to ISO 6722-1

 Special PVC insulation with properties according to ISO 6722-1, Class C

Special Properties

 Heat resistant cable. Suitable for applications inside the engine compartment.
