Application

These cables are ideal for use in automotive applications where higher current carrying capacity and mechnical strength are required.

Standard

 Adapted to ISO 6722

Voltage Rating

 60 V D.C., 25 V A.C. (Suitable for 12 Volts and 24 Volts systems)

Temperature Range (3000 Hrs)

 -40°C to +105°C

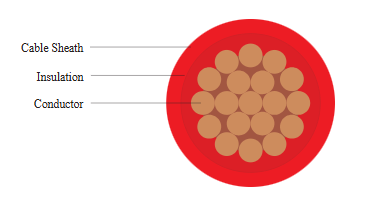

Cable Construction

 Soft annealed electrolytic copper Cu-ETP according to DIN EN 13602.

 Conductor construction according to ISO 6722

 PVC insulation, class B to ISO 6722

 PVC sheath, class B to ISO 6722

Properties

 The special cable construction, offers higher mechanical strength without compromising with the cable flexibility. The cable is suitable for rugged applications across the extreme temperature range.

Packing

 Available in 100 mtrs. Longer length available in spools.
