APPLICATION

The cable is designed to have a robust halogen free construction which is suitable to operate up to 1100V of applications. This cable is suitable for a wiring installation suplying all critical loads requiring supply integrity for required time period under fire situation. They ensure continued operation of the vital circuits in the event of the fire outbreak.

TECHNICAL DATA

Voltage Rating: 1100 Vac and 1500 Vdc

Operating Temperature Range: -5°C to 90°C (fixed installation)

Minimum Bending Radius: 12 x overall cable diameter

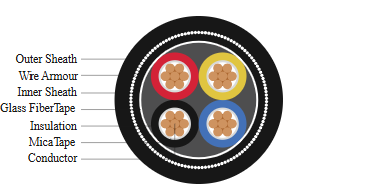

CABLE CONSTRUCTION

Conductor : Electrolytic Annealed Plain / Tinned Copper (Class 1/2) as per IS 8130

Primary Insulation : Mica Tape Layer (s)

Secondary Insulation : Cross linked PE (XLPE) / Cross linked HFFR.

Core Colours :

 1 Core – Red, Black, Yellow, Blue or Natural

 2 Core – Red & Black

 3 Core – Red, Yellow & Blue

 4 Core – Red, Yellow, Blue & Black

 5 Core – Red, Yellow, Blue, Black & Grey

 6 Core and above are number coded

Inner Sheath : Thermoplastic HFFR

Heat Barrier Tape (Optional) : Glass Fibre tape

Armour : Galvanized round wire for multicore & Non-Magnetic wires for single core

Sheath : Thermoplastic HFFR (HFS-TP 90) / Cross linked HFFR (HFS-XL 90)

PROPERTIES
