Application

Wiring cable in tool machinery, conveyor belts and production lines, plant engineering, Industrial machinery, air conditioning, steel production plants and rolling mills.

Standard

Adapted to DIN VDE 0262, DIN VDE 0281 Part 13 with increased insulation thickness for 1 kV.

Technical Data

Nominal Voltage: Uo / U 0.6 / 1 kV

Insulation Resistance: Min. 20 GΩ x cm

Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 15 x cable ø. Fixed installation 4 x cable ø

Test Voltage: 4000V

Breakdown Voltage: Min. 8000V

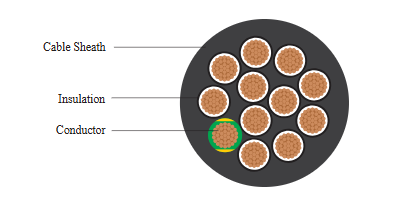

Cable Construction

 Bare copper, fine wire conductors, as per EN60228 Cl. 5.

 Special PVC core insulation TI2, to EN 50363-3.

 Black Core with continuous white numbering to DIN VDE 0293.

 Green/yellow earth core in outer layer (3 cores and above).

 Cores stranded in layers with optimal lay-length.

 Special PVC outer sheath TM2, to EN 50363-4-1.

 PVC self-extinguishing and flame retardant according to IEC 60332-1-2.
