JZ-YCY

product

Application

For use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses.

Standard

Requirements adapted to DIN VDE 0245, 0281 Part 13.

Technical Data

Nominal Voltage: Uo /U 300 / 500V

Insulation Resistance: Min. 20 GΩ x cm

Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 10 x cable ø. Fixed installation 5 x cable ø

Test Voltage: 4000V

Breakdown Voltage: Min. 8000V

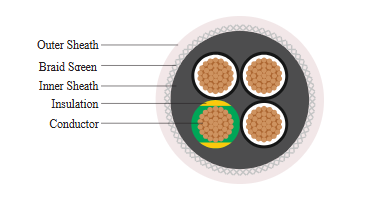

Cable Construction

Bare copper, fine wire conductors, to EN 60228 Cl.5.
Core insulation of PVC TI2 EN 50363-3.
Black Core with continuous white numbering to DIN VDE 0293.
Green/Yellow earth core in outer layer (3 cores and above).
Cores stranded in layers with optimal lay-length.
Special PVC inner jacket.
Tinned copper, braided screen, approx 85% coverage.
Transparent special PVC outer sheath.

Properties

 The clear transparent PVC outer sheath accentuates the optical view of the tinned copper braid.

 PVC self-extinguishing and flame retardant according to EN 60332-1-2.

 JZ-YCY grey (RAL 7001) is available in oil resistant variant as JZ-YCY OR. The outer sheath provided here is of special PVC TM5 to BS EN 50363 -4.1.

 For oil resistant sheath kindly add ‘OR’ after the part nos.
