Application

Power cables for energy supply are installed in open air, in underground, in water, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.

Technical Data

 Power and control cable to IEC 60502-1

Temperature Range: Flexing – 5°C to + 50°C. Fixed installation -20°C to +70°C

Nominal Voltage: UO / U 0.6 / 1 kV

Test Voltage: 4 kV

Max. permissible tensile stress with cable grip for CU-conductor: 50 N/mm²

Minimum Bending Radius: For single core approx. 15 x cable ø. For multi core approx. 12 x cable ø.

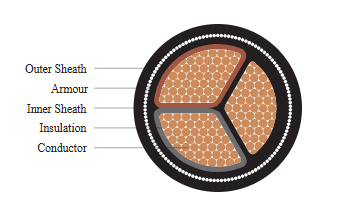

Cable Constructtion

 Plain copper conductor, to DIN VDE 0295.

 Cl. 1 or Cl. 2 solid or stranded type, BS 6360.

 Cl. 1 or Cl.2, IEC 60228 and HD 383.

 PVC core insulation, DIV4 to HD 603.1.

 Cores stranded concentrically.

 Colour coded to DIN VDE 0293 – 308, 0276 part 603 or HD 186.

 Core colour for 3 + 1/2 conductor.

 J-type : gnyl (1/2) bn, bk, gy.

 O-type : bu (1/2) bn, bk, gy.

 PVC outer jacket, DMV5 to HD 603.1.

 Sheath Colour : Black.
