Application

Industrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standard

BS 5467

Technical Data

Voltage Rating: 600/1000V

Minimum Bending Radius : 15 x Cable diameter

Maximum Conductor Temperature: 90°C

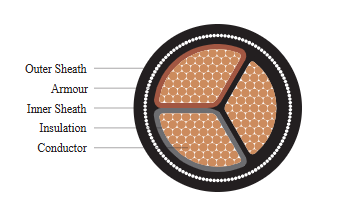

Cable Construction

 Single, two, three, four and five core cables. Stranded plain copper conductors, XLPE insulated, cores laid up, extruded PVC bedding, galvanised steel wire armoured (Aluminium wires for single cores) and PVC sheathed.

Core colours:

 Single core : Brown or blue.

 Two core : Brown, blue.

 Three core : Brown, black, grey.

 Four core : Brown, black, grey, blue.

 Five code : Brown, black, grey, green/yellow, blue.

 (There is the option for core colour as per customer requirement).

Sheath Colour: Black (Other colour as per customer requirement)
