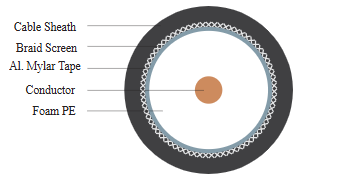

Conductor: The central conductor is made of solid electrolytic grade annealed plain copper conductor, which has distinct advantages over traditional copper conductor

Insulation: The insulation provided over the conductor is of foam PE

Screen: Aluminium mylar tape is provided over the insulated conductor to shield the conductor and ensures disturbance free transmission of signals

Braiding: The braiding is generally provided with 60% coverage of ATC (Annealed Tinned Copper) / Al alloy

Jacket: Specially formulated PVC, for rugged outdoor usage.

Marking: The cables are marked ‘RATNA CO-X’
