Application

These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.

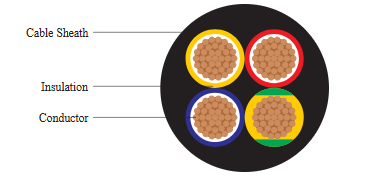

Ratnaflex -M: PVC insulated & sheathed multicore cables suitable for all general purpose wirings for max. operating temperature of 70°C.

Ratnaflex -M HR: HR PVC insulated & sheathed multicore cales suitable for higher operating temperature of 70°C

Ratnaflex -M FR: Flame Retardant (FR) multicore cable enhances safety and are suitable for max. operating temperature 70°C.

Ratnaflex -M HRFR: Heat Resistant (HR) & Flame Retardant (FR) multicore cables are suitable for higher operating temperature up to 85°Cwith enhanced safety

Ratnaflex -M FR-LSH: Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.

Technical Data

Approvals : IS 694 marked, FIA/TAC

Conductor: Electrolytic grade annealed copper Class 5 as per IS 8130

Standard Cable Colour: : Black, grey & white

Voltage Rating : Up to and including 1100V

Packing: Standard packing of 100 mtr. in coil. Longer length available on requestUp to and including 1100V
