Application

Solar cable popularly known as DC Solar or Photovoltaic cables are used for interconnection between various elements in photovoltaic (PV) system including roof top PV systems in residential or commercial buildigns, PV panels / module interconnection, between panel and string box or from string box to inverter. These are used as free hanging, movable or fixed installations in various indoor, outdoor, hazard explosion areas, in industries as well as in agriculture. They are suitable for applications in equipment with protective insulations (protecting class II)

Statutory Requirement

The Quality Control Order (QCO) on DC Solar Cable released by Ministry of Commerce & Industry on 24th August 2023, mandates the use of DC Solar cable marked with IS 17293 in India. Any person who contravenes the provisions of this Order shall be punishable under the provisions of the Bureau of Indian Standards Act, 2016.

Standard

 IS 17293:2020

 RR Kabel Solar Cable marked with IS 17293 complies with IEC 62930 and exceeds the requirements of EN 50618

Technical Data

Voltage Rating: AC 1.0/1.0 kV

Max. PV-System Voltage: DC up to 2.0 kV possible

Max. permissible operating voltage in AC systems: 0.7/1.2 kV

Max. permissible operating voltage in DC systems: 0.9/1.8 kV

Short Circuit Temperature: 250°C (referring to period of 5 sec.)

Operating Temperature Range: -40°C to +90°C

Minimum Bending Radius: Fixed Installation approx. 4 x cable Ø

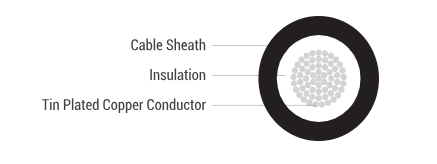

Cable Construction

Conductor: Fine wire bunch of annealed tinned copper conductors according to IS 8130

Insulation: UV resistant crosslinked Halogen Free Flame Retardant core insulation

Core identification: Red, Black or Natural

Sheath: UV resistant crosslinked Halogen Free Flame Retardant sheath over insulation

Cable Colour: Black, Red, Black with red strip (or as required)
