UL 2576, 2598

product

Application

These cables are used for internal wiring of public address systems, intercoms, internal telephones, remote control circuits, wiring for machine tool control circuits, medical equipments.

Technical Data

Standard: UL – Std. 758; UL – Style 2576, 2598

Nominal Voltage: 300V

Temperature Range: -20°C to + 80°C

Test Voltage: 1500V

Minimum Bending Radius: Flexing approx. 15x cable ø

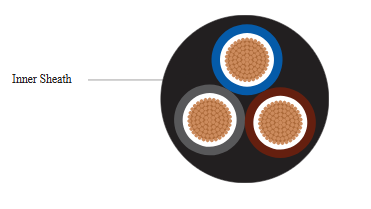

Cable Construction

  • Annealed Plain copper, fine wire conductors AWG 24 – 16, Table 30.3 UL 1581 ASTM – B.
  • Special PVC core insulation class 43, semirigid to UL – Std. 1581 table 50.182 and 50.183.
  • Colour coded to H05VV – F up to 5 cores; coloured black with numbers for above 5 cores.
  • Cores stranded in layers with optimal lay – length.
  • Special PVC outer jacket class 43 to UL – Std. 1581 table 50.182.
  • Outer jacket colour black or grey.

Properties

  • PVC self-extinguishing and flame retardant, test method VW-1, FT 1
